Product Description
16″ Gooseneck sensor, detects all CFC Refrigerants such as R-22, R-124, R-11 and R-12 etc.
-26%
GAS DETECTORS & ANALYSERS, REFRIGERANT GAS LEAKAGE DETECTOR, Metravi

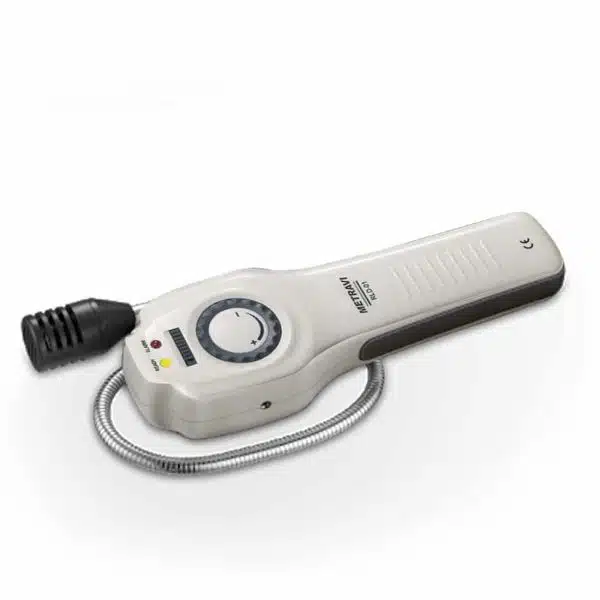

RLD-01 Refrigerant Gas Leakage Detector
Availability:
6 in stock
- Detects all CFC refrigerants such as R-22, R-124, R-11 and R-12
- The ultra-sensitive long life sensor detects the more current, difficult-to-detect HFC refrigerants such as R-134a, R-404A, and new R-22 replacements, R-410A and R-407C.

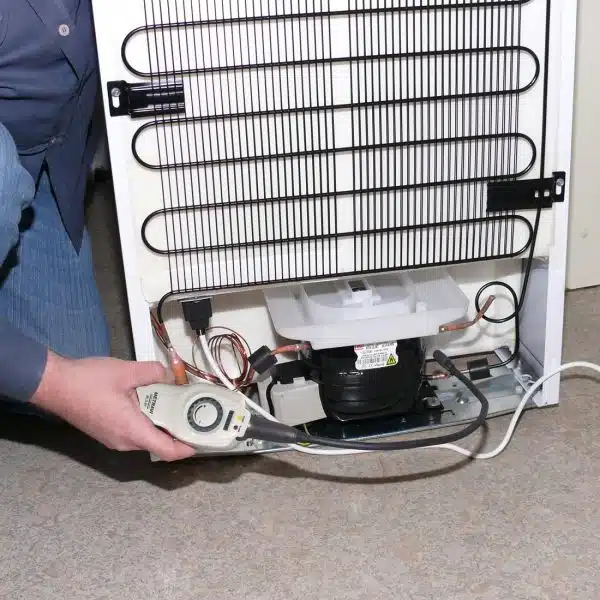

- It’s long, slim gooseneck probe design is easy to use in close areas and for extending into hard-to-reach areas.
- It’s adjustable alarm, easy one-hand operation and impact resistance storage case add up to value and convenience
- Sensitivity to detect: 100ppm of R-134A/R-22
- Response Time < 2 sec
- Audio and Visual Alarm
9,675.00 ₹ 13,061.00 ₹
6 in stock
Technical data
Specification
Model
RLD-01
Brand
Metravi
Colour
Cream
Warranty
One year against manufacturing defects
Detecting Gases
R-11, R-12, R-124, R-22
Sensitivity
100ppm of R-134A/R-22
Sensor Type
Semiconductor Sensor
Warm-up Time
Approx 1 min
Response Time
Less then 2 sec up to 40% LEL
Alarm
Audio Alarm, Visual Alarm
Duty Cycle Range
Continuous
Power Source
Battery Operated
