Product Description
One device is suitable for a range of different fan types. It also provides an easy way to measure the flow rate in a duct system. The device is supplied with an optional FloXactTM averaging measurement probe.
-20%
Air flow and velocity transmitters, HK

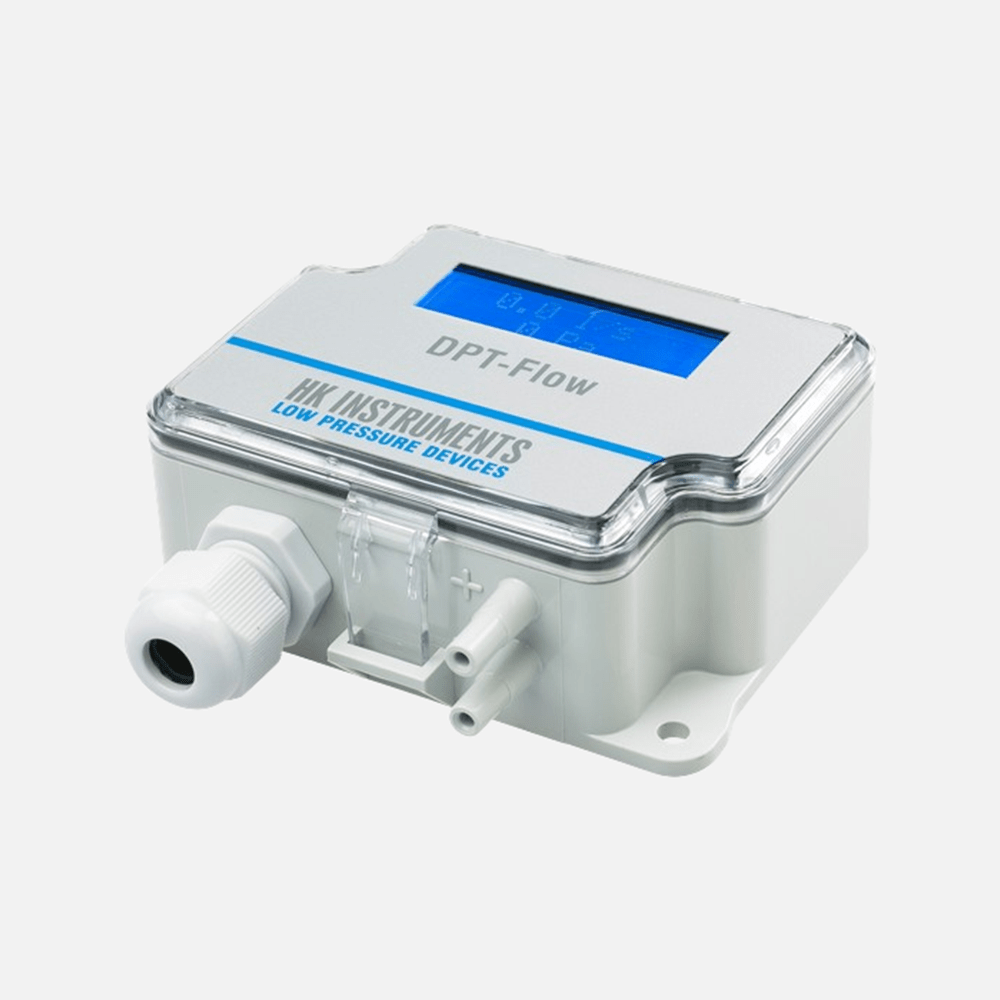

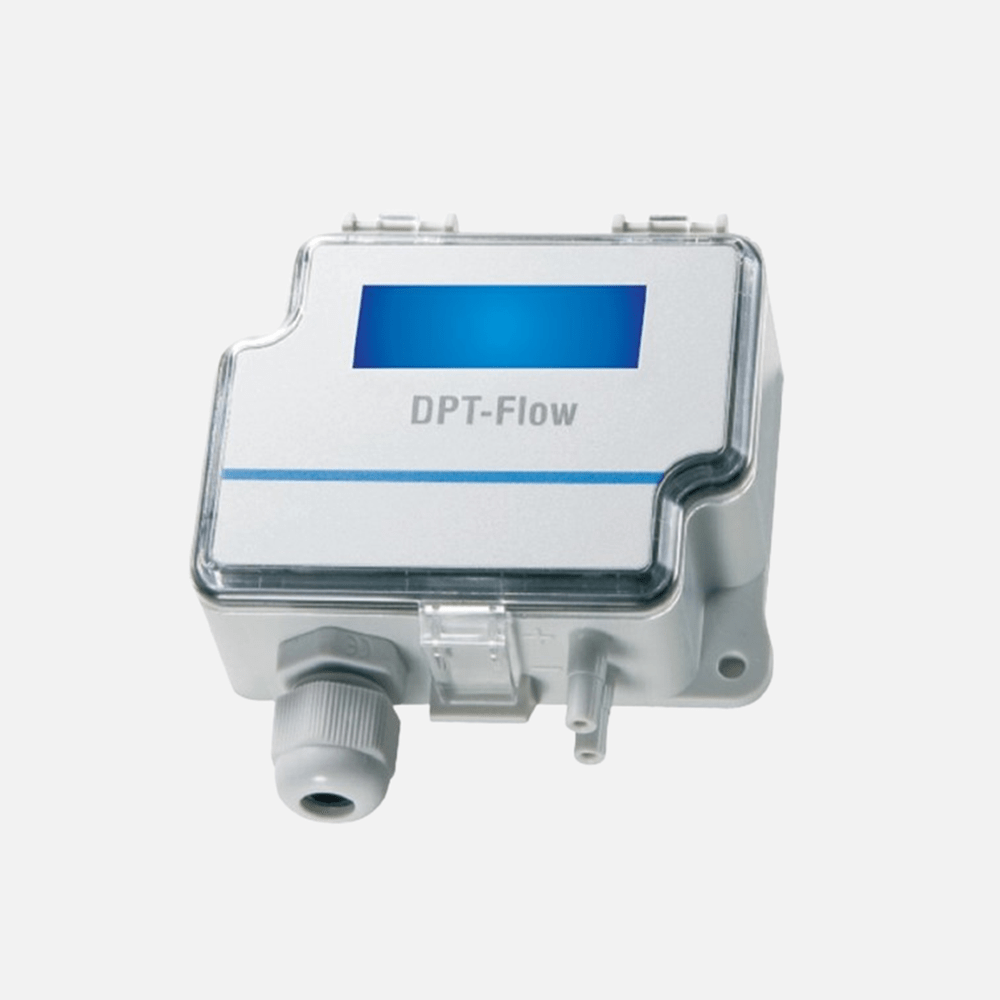

DPT-Flow Transmitter
Availability:
33 in stock
- Measure and monitor in-duct volume flow, velocity, or differential pressure
- Measure and monitor airflow across centrifugal fans
- Volume flow: m3/s, m3/h, cfm, l/s
- Velocity: m/s, ft/min
- Pressure: Pa, inWC, mmWC, kPa, mbar, psi
- Volume flow or velocity: voltage (0–10 V / 2-10 V) or current (4–20 mA)
- Pressure: voltage (0–10 V / 2-10 V) or current (4–20 mA)
11,999.00 ₹ 14,999.00 ₹
33 in stock
Technical data
Technical Details
Accuracy (from applied pressure): (models 1000 and 2000)
Pressure < 125 Pa = 1 % + ±2 Pa
Pressure > 125 Pa = 1 % + ±1 Pa
Accuracy (from applied pressure): (models 5000 and 7000)
Pressure < 125 Pa = 1.5 % + ±2 Pa
Pressure > 125 Pa = 1.5 % + ±1 Pa
Zero point calibration:
automatic with autozero element (-AZ) or by pushbutton
Measuring units
Pressure: Pa, kPa, mbar, inchWC, mmWC, psi
Flow: m3/s, m3/hr, cfm, l/s, m/s, ft/min
Supply voltage:
24 VAC ±10 % / 24 VDC ±10 %
Power consumption:
< 1,0 W
Output signals for pressure and air flow (selectable by jumper):
0…10 VDC / 2...10 VDC
4…20 mA
Operating temperature:
20…+50 °C (with autozero calibration -5...+50 °C)
-40...+50 °C (-40C model)
Response time:
1...20 s
Protection standard:
IP54
